STOPA FLEX

High flexibility for efficient material flow

Abbildung: STOPA FLEX

Optimize your workflow with STOPA FLEX, our flexible storage system for efficient material flow!

Versatile connection options for stations create ideal conditions for perfecting your processes. Whether it‘s different sheet formats or other goods: this system offers high storage density with minimal space requirements. The space-saving tower design optimizes your space utilization and gains important production area.

The sturdy construction allows for the storage of even the heaviest loads. STOPA FLEX also enables fully automatic linking with downstream processing machines. As an option, we offer STOPA FLEX as a building-supporting system to spatially separate your inventory and production. Discover the future of process-optimized manufacturing! Depending on the need, long side and short side stations with scissors lift cartS and transport carts, also in combination, are possible.

BENEFITS AT A GLANCE

  • Highly flexible storage system in tower construction for various sheet formats and other goods.

  • Heavy loads are no problem thanks to the sturdy construction.
  • Maximum storage capacities through different loading heights.
  • Fully automatic linking with processing machines is optionally possible.
  • Pulling and pushing technology ensures high packing density.
  • 360° connection of stations possible: long side, short side or in combination.
  • Simple and intuitive control.
  • Connection to customer‘s ERP systems optionally available.
  • Also available as a building-supporting version.

Product-Highlights and Options STOPA FLEX


Easy machine connection

For process-optimized manufacturing, you can directly link STOPA FLEX fully automatically with processing machines.

Continuous inventory management

With the WAREHOUSE MANAGEMENT SYSTEM WMS-Tower 4.0, you always have a precise overview of your inventory. Connection to higher-level control systems via an ERP interface is optionally available.

Modularly expandable

Whether as a single-tower or double-tower storage: STOPA FLEX enables 360° connection of stations for optimizing your workflow.

More space for your production

STOPA FLEX is also available as a Building-supporting construction version. With roof and wall elements, the storage system becomes its own structural unit, which can be directly connected to your existing buildings.

Technical Data STOPA FLEX


Palett format MF

Dimensions L × W [mm]*
2.500 × 1.250
Payload per storage location [kg]
3.000
Maximum system height [m]
20
Maximum lifting peed [m/min]
30
Maximum pulling speed [m/min]
12
Building-supporting construction
optional

Palett format GF

Dimensions L × W [mm]*
3.048 × 1.524
Payload per storage location [kg]
3.000
Maximum system height [m]
20
Maximum lifting peed [m/min]
30
Maximum pulling speed [m/min]
12
Building-supporting construction
optional

Palett format XF

Dimensions L × W [mm]*
4.064 × 2.032
Payload per storage location [kg]
3.000/5.000
Maximum system height [m]
20
Maximum lifting peed [m/min]
30
Maximum pulling speed [m/min]
12
Building-supporting construction
optional
* Special format on request

Application examples STOPA FLEX


Pictures

Bild: Anwendungsbeispiel STOPA Flex Einlagerung

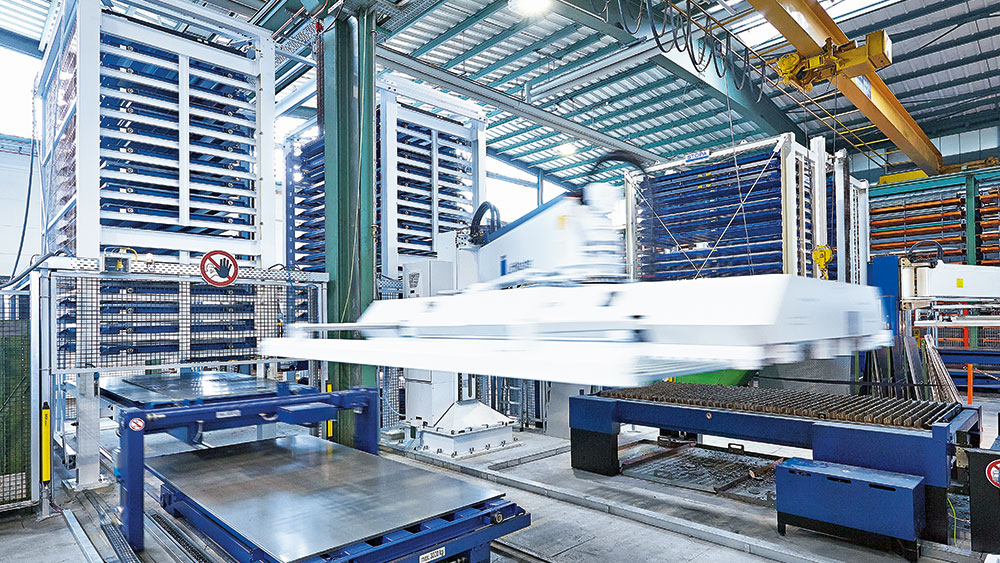

STOPA FLEX storage

Bild: STOPA Flex Doppelwagen

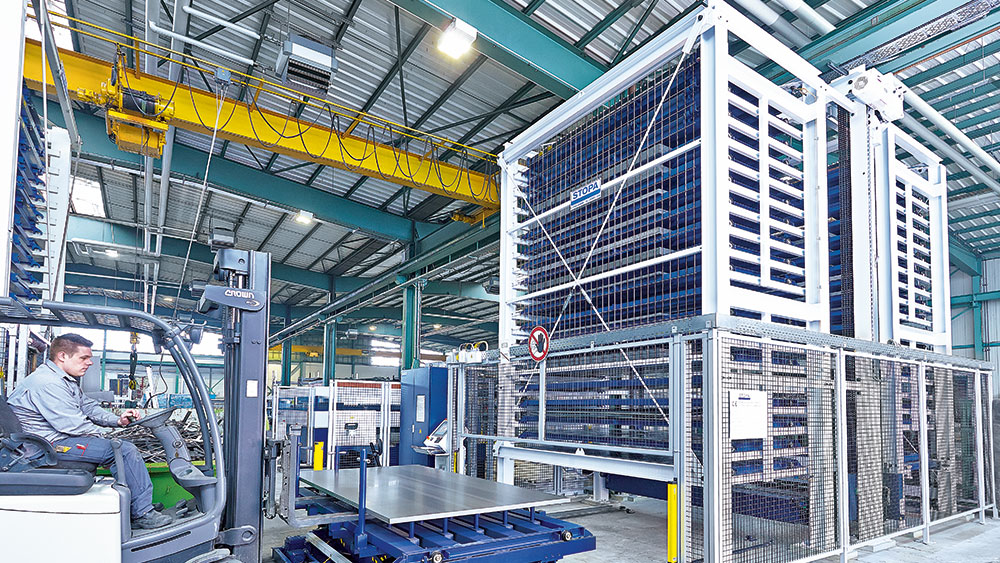

STOPA with FLEX DOUBLE CART

Videos

STOPA FLEX 3D Simulation

STOPA CUSTOM-MADE PRODUCTS


STOPA storage systems are predominantly modular and expandable. This enables individual adaptations to almost any situation. In addition, we work with you to develop special solutions for your specific requirements.
