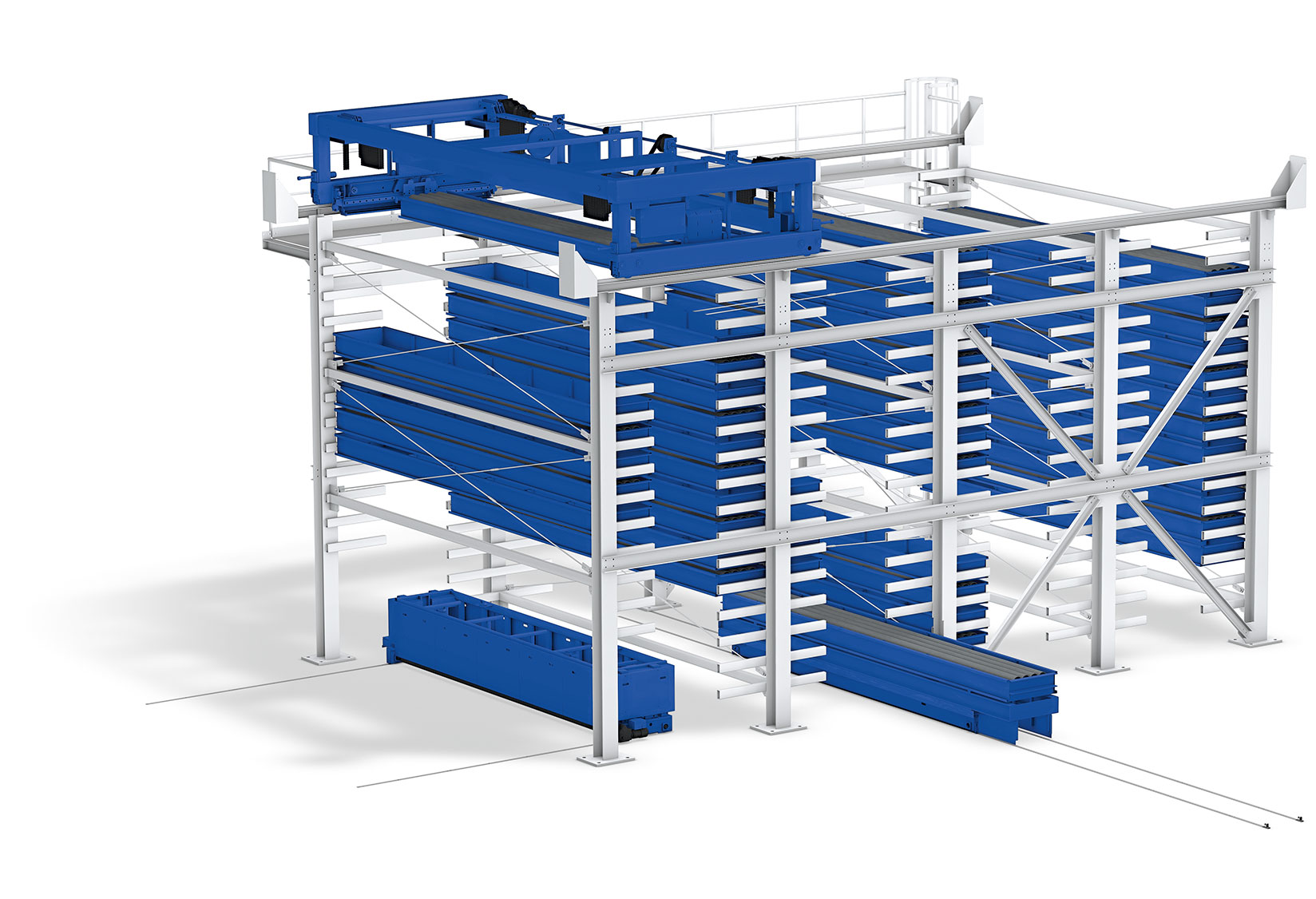

Picture: STOPA LG-B
Technical data
Application examples
Your contact person

Maximize storage capacities for efficient processes! Gain new production areas through optimized space utilization.

With STOPA LG-B, up to 1,000 System CASSETTES can be arranged in a space-saving manner, as the storage and retrieval machine (SRM) operates above the storage area, eliminating the need for an aisle.

The storage system also allows for a high degree of automation, as it can be fully automatically connected to one or more processing machines. STOPA LG-B is also optionally available as a building-supporting version. This gives you the opportunity to create space for additional production areas by moving material storage outside, without being limited in handling.

Choose STOPA LG-B: The automated storage system for the highest demands in stockpiling.

BENEFITS AT A GLANCE

  • Impressive storage capacity due to compact construction.
  • Efficient storage of long-span goods and other items through varying compartment heights.
  • Always expandable for rapid increase in storage capacities.
  • Innovative automation solutions for optimized workflows and the highest demands of the industry.
  • 360° connection of stations possible: long side, short side or in combination.

  • WMS-Basic 4.0 for the management of fixed storage spaces. Optionally: WMS-Dynamic 4.0 for dynamic storage management, variable loading heights, and automatic connection to processing machines.

  • Connection to customer-specific ERP systems optionally possible.

Product-Highlights and Options STOPA LG-B

Maximum storage capacity

The LG-B large storage system has space for up to 1,000 LONG System CASSETTES, which can also be designed for high payloads.

AUTOMATED CONNECTION TO PROCESSING MACHINES

STOPA LG-B offers various possibilities for optimizing your production processes. Thus, the storage system can be directly connected to processing machines.

The universal storage solution for long-span goods

Efficient and secure storage of long-span goods and similar items up to a length of 9,000 mm.

More efficiency through flexible warehouse management

STOPA LG-B uses the intelligent WAREHOUSE MANAGEMENT SOFTWARE WMS-Basic 4.0. To further optimize your storage and retrieval processes, you can optionally upgrade to WMS-Dynamic 4.0. This, for example, automatically targets the nearest available storage space.

Technical Data STOPA LG-B

Cassette length usable [mm]*
3.000 – 9.500
Cassette width usable [mm]**
560/680/840
Payload per storage location [kg]
1.500/3.000/5.000
Maximum system height [m]***
20
Maximum lifting speed [m/min]
30
Maximum pulling speed [m/min]
25
Travel speed [m/min]
100/150/200

* Special length on request   ** Special width on request   *** Special hight on request

Print PDF

APPLICATION EXAMPLES STOPA LG-B

Pictures

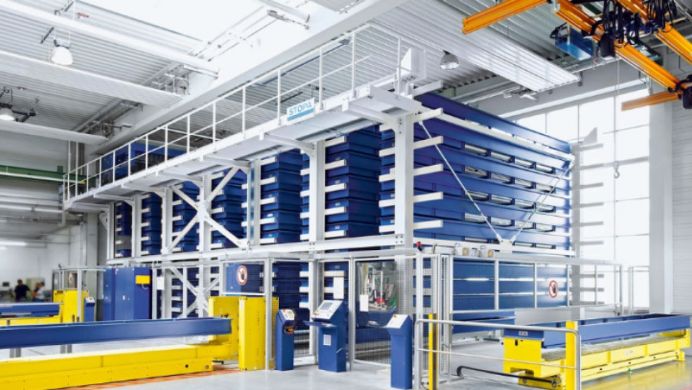

Picture: STOPA LG-B

STOPA LG-B with multiple staions connected

Videos

3D Simulation

STOPA CUSTOM-MADE PRODUCTS

STOPA storage systems are predominantly modular and expandable. This enables individual adaptations to almost any situation. In addition, we work with you to develop special solutions for your specific requirements.
ENQUIRE

STOPA Sales

ASK OUR EXPERT

Are you interested in speaking to a storage system expert?

We’ll help you find the perfect solution for your needs. Please send us an email, give us a call, or fill out the form.

One of our storage system specialists will be in touch with you soon.

Our sales staff
Sales partners worldwide

CONTACT DATA

STOPA Anlagenbau GmbH
Industriestr. 12
77855 Achern-Gamshurst

Tel +49 7841 704-0
Fax +49 7841 704-190
sales@stopa.com

ENQUIRY

Adress
Name

How much is 7+4?

Input fields marked with an asterisk (*) are required to process your request. Further information is voluntary. To process your request, we use the communication channels that you have entered in the contact form (e.g. e-mail, telephone). Further information on the handling of your personal data can be found in our privacy policy.

MORE SOLUTIONS LOng-Span goods storage systems

Effective management of long-span goods can make a huge difference in the production chain.
Picture: STOPA LG-E

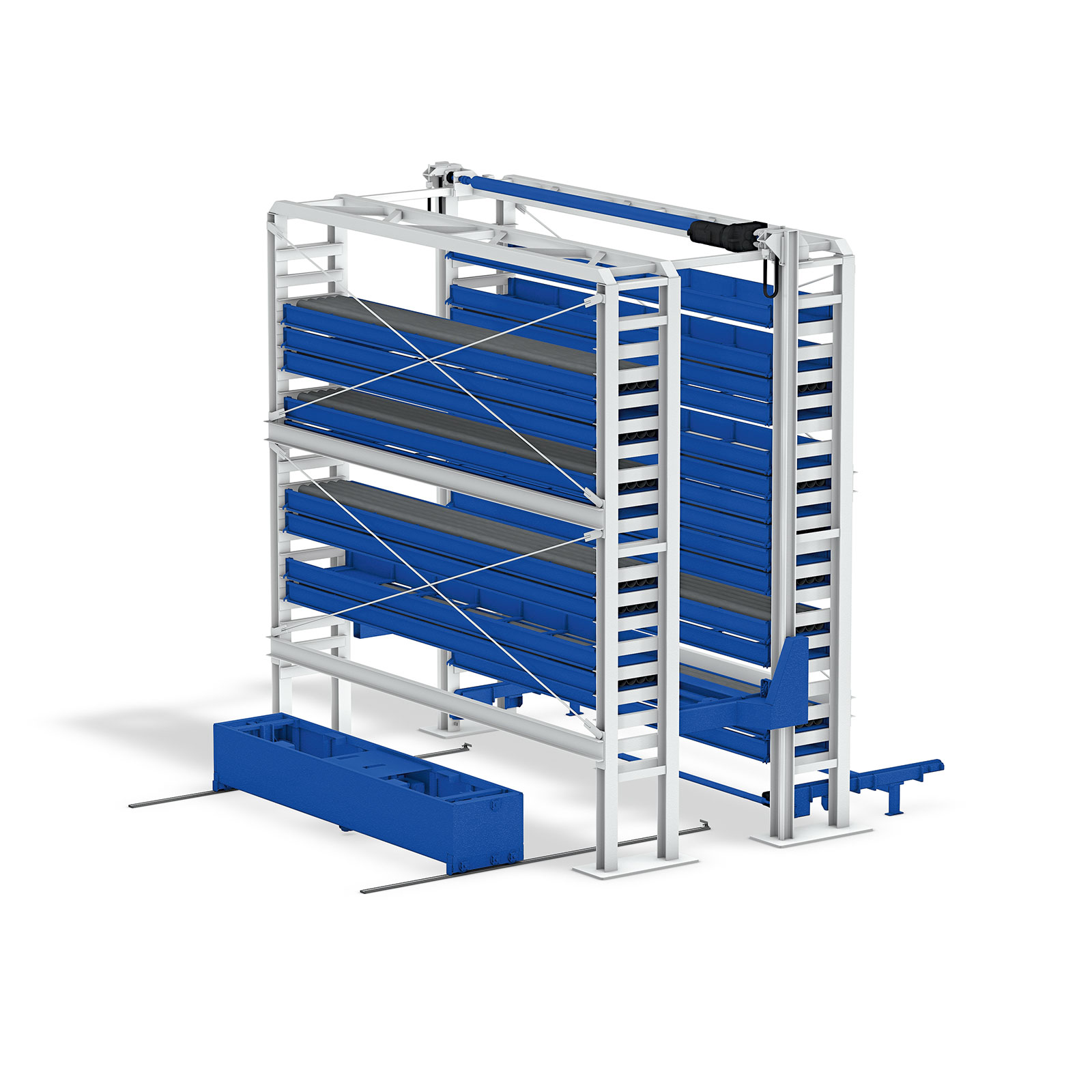

STOPA LG-E

More flexibility – more efficiency
Learn more
Picture: STOPA LG-T

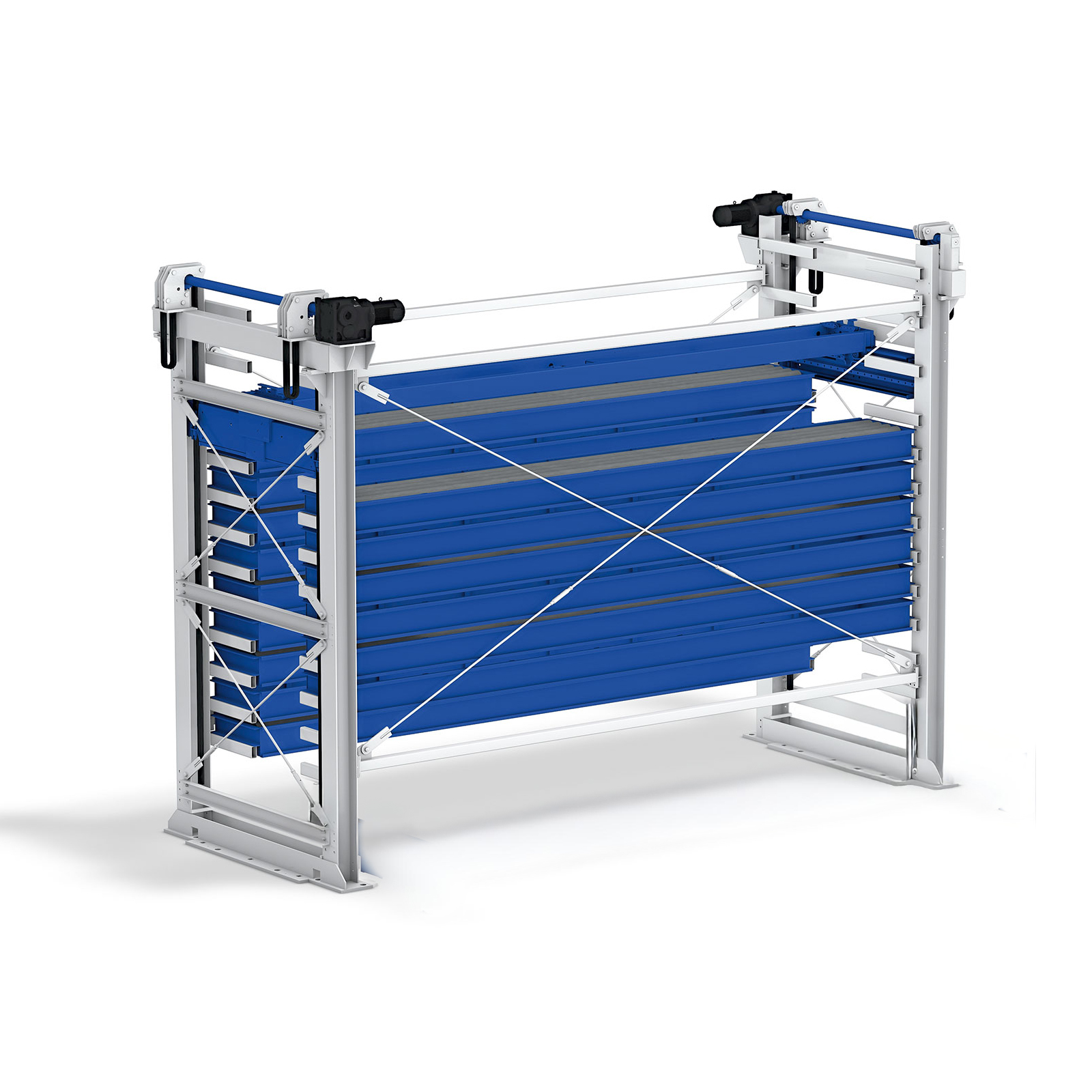

STOPA LG-T
