STOPA Equipment

Load Carriers

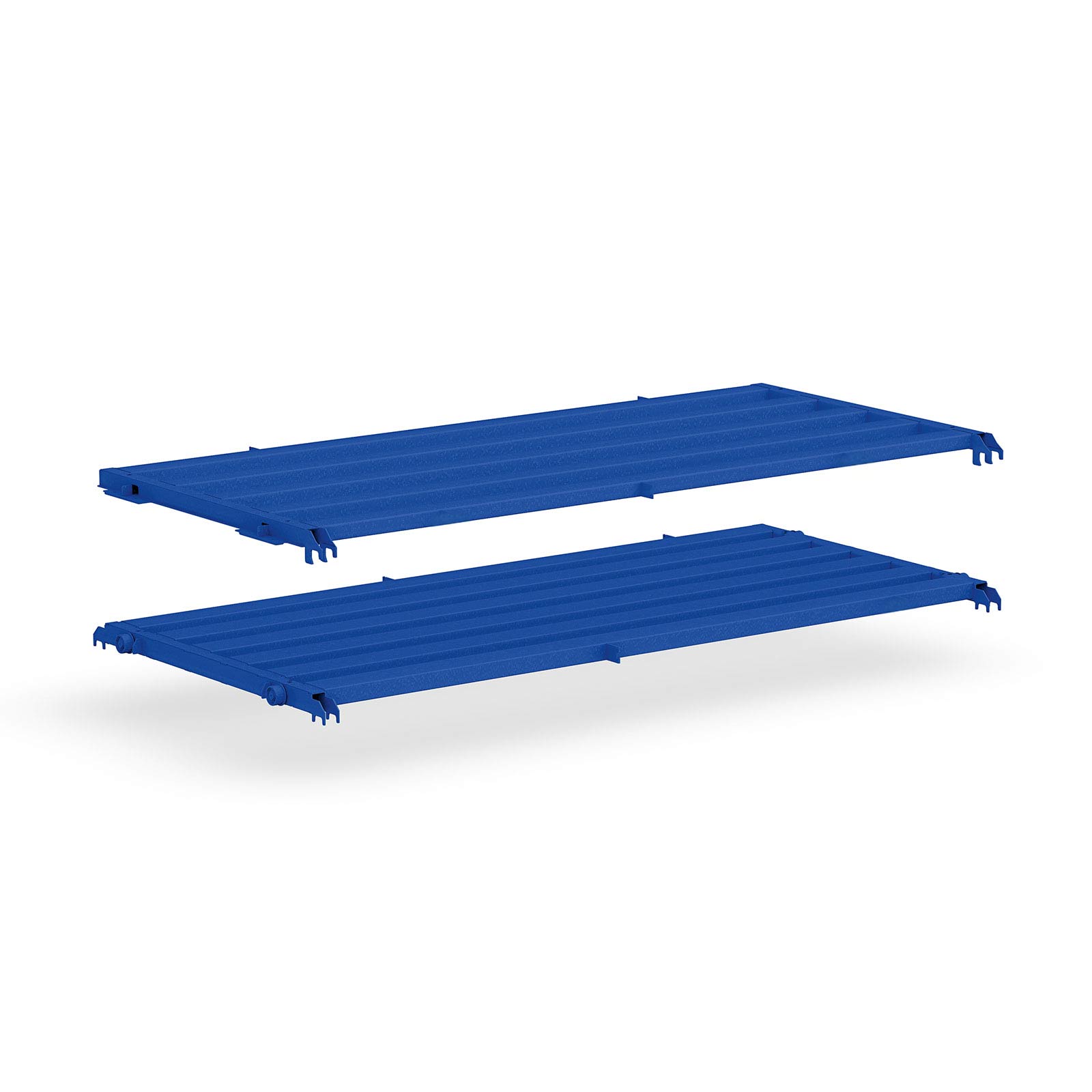

STOPA System Pallet

The system pallets for sheet metal storage systems are available in predefined sizes for all standard sheet metal formats and (depending upon actual requirements) for 3 or 5 tons of effective payload. The support rollers mounted on the face side are self-supporting, and guarantee easy handling for the operator. Additionally, the wear and tear of the system pallets in daily use is minimized.

  • Available for all standard sheet formats
  • Can be expanded with floor plates
  • Effective payload: 3.000 kg or 5.000 kg

read more

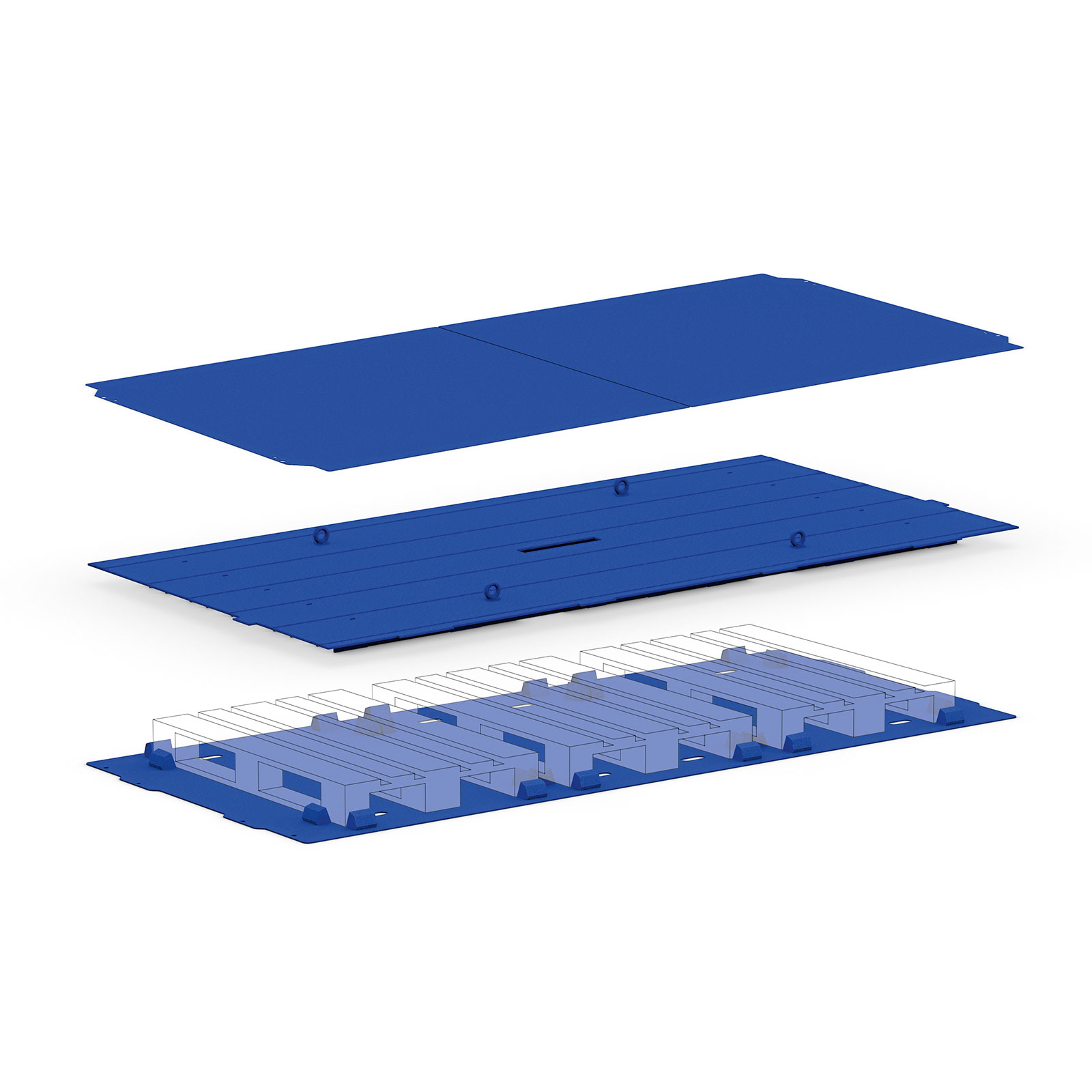

STOPA Floor Plates

As a rule, floor plates are used to store small parts (which would normally fall through the pallet tubes) and also grid boxes or wooden pallets. For this reason, the pallets are available in several different models.

read more

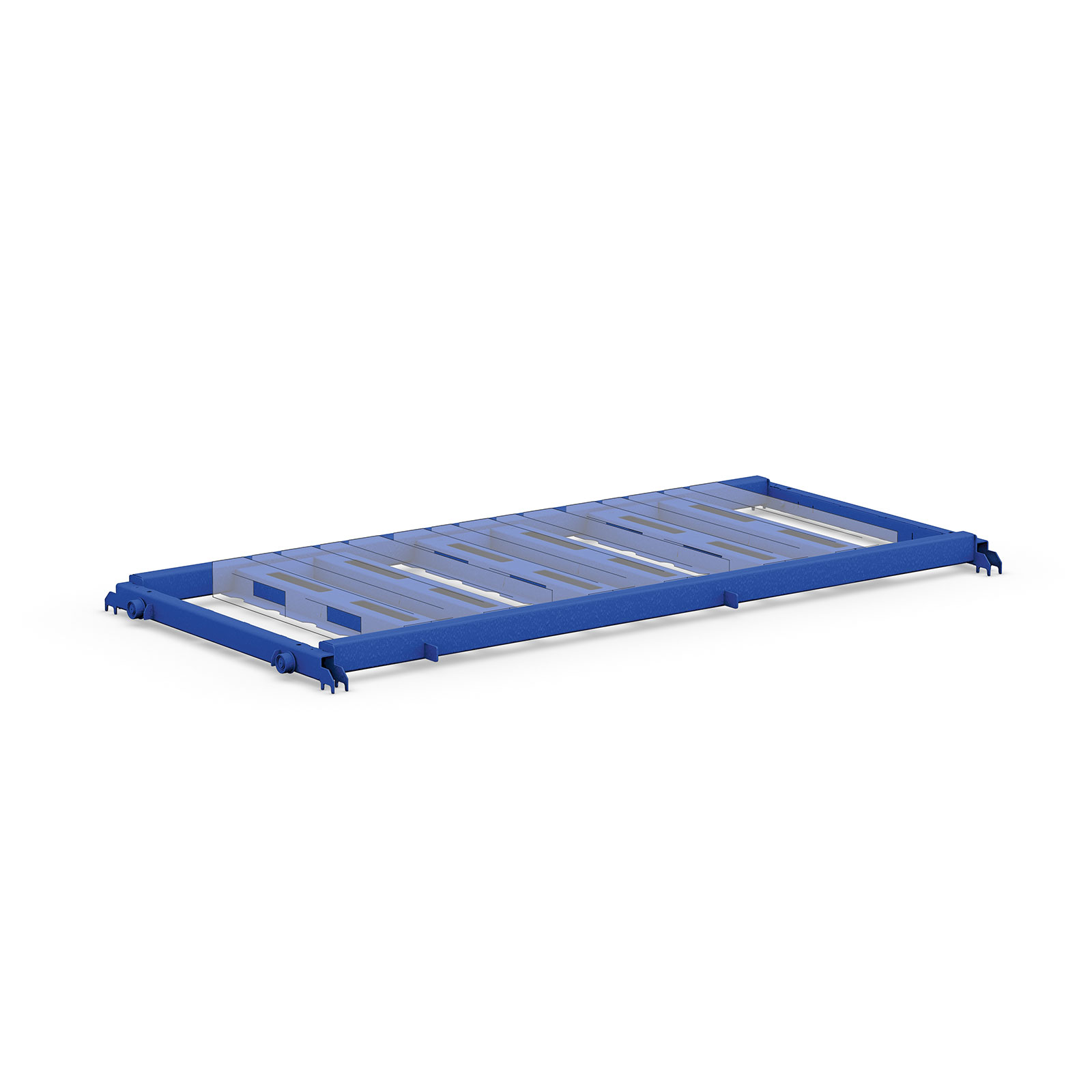

STOPA Epal Carrier

The STOPA EPAL CARRIER permits the return storage of sheets on EPAL-EUR-Pallets. In the empty state (when loaded only with EPAL-EUR-Pallets), no second shelf bay is filled here. A further advantage is that normally no floor plates are needed. The EPAL-EUR-Pallets are sunk into the STOPA EPAL CARRIER.

read more

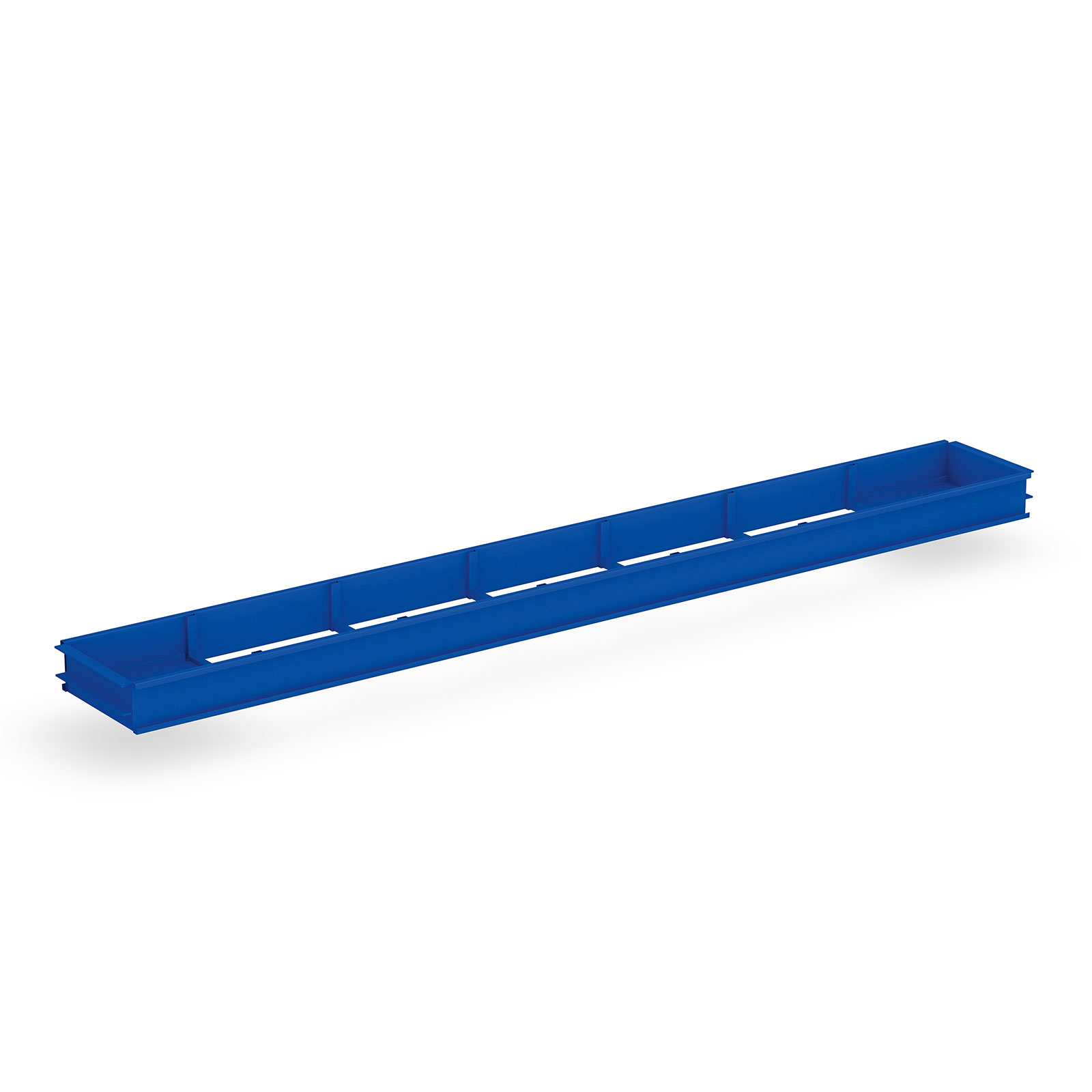

STOPA Long-Span Cassettes

  • For the storage of various different materials
  • Different models possible
  • Plugged-in bolts to separate different materials

read more

Process Optimisation

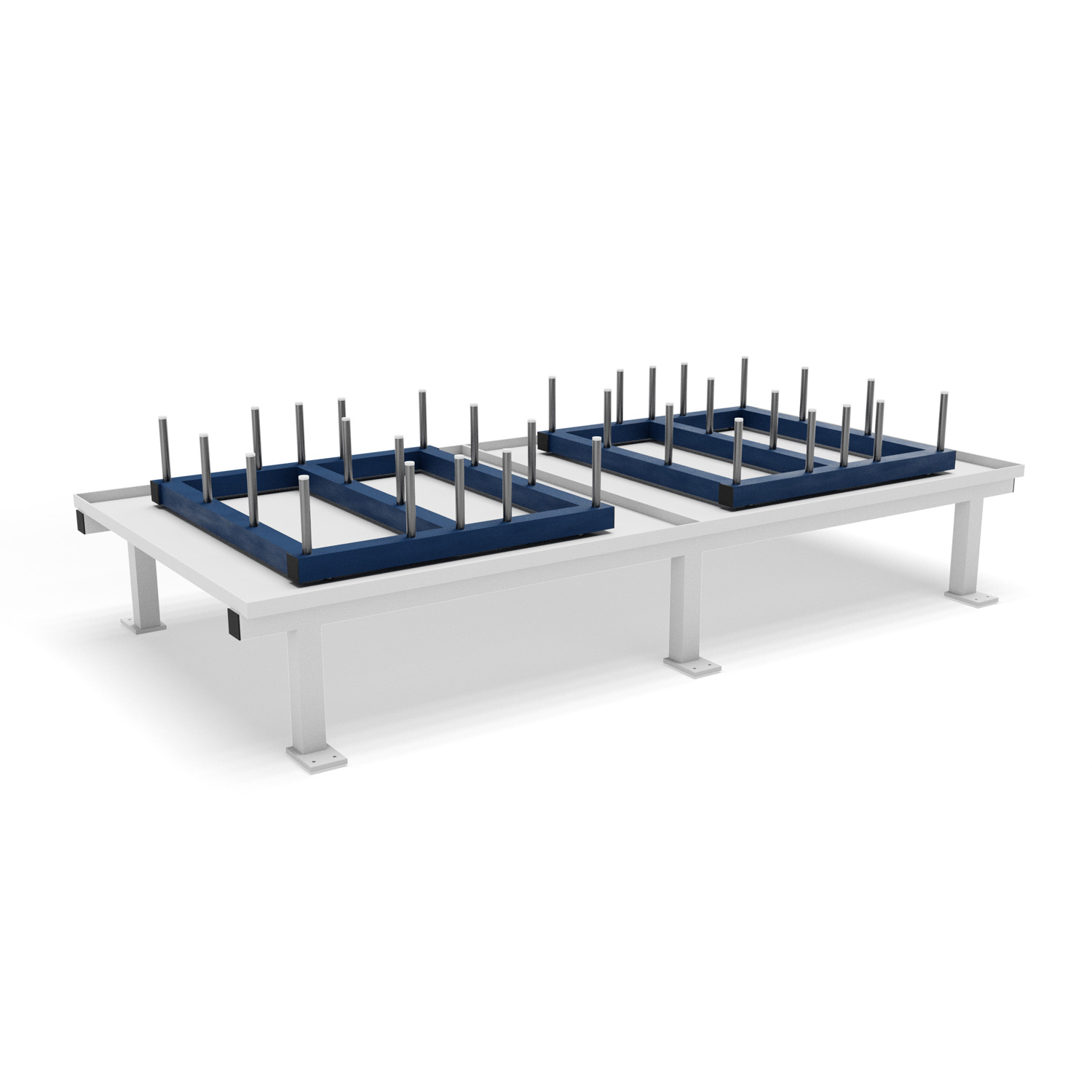

STOPA Unpacking Table

The STOPA Unpacking Table is the ideal helper, and accelerates the process of simply unpacking stacks of raw sheet metal and/or of separating the stacks and removing them from the carrier pallets (which are usually made of wood).

  • For separating raw sheet metal and wooden pallet
  • Solid table with freely traveling stamp frame
  • Available for all standard sheet formats

read more

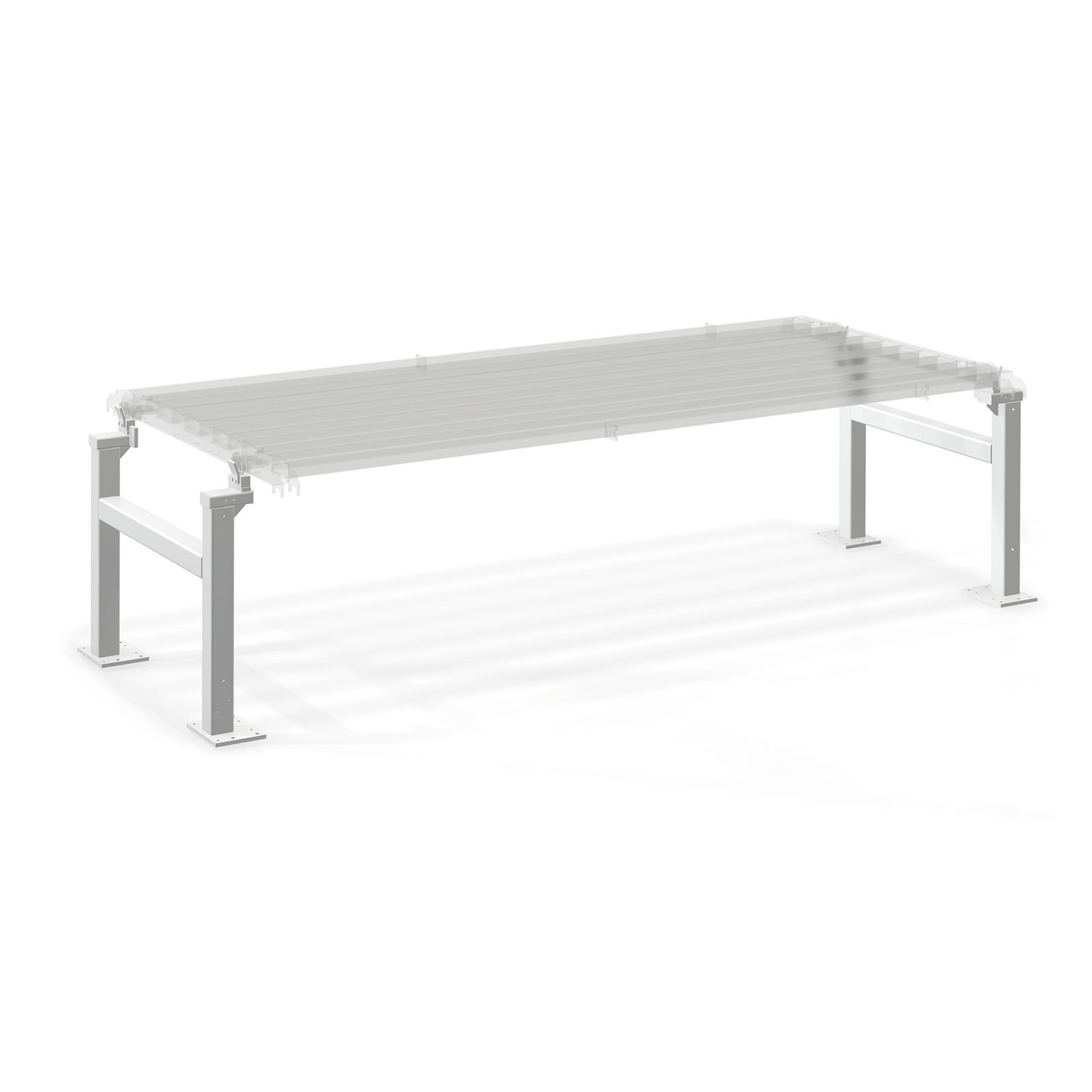

STOPA Pedestal

So-called deposition frames are used to bring system pallets with raw sheet metal or finished parts to predefined work positions.

  • Different heights possible
  • Only in combination with scissor lifting table / WIRELESS CART
  • Positionable loading surfaces possible
  • Several deposition frames can be used in series

read more

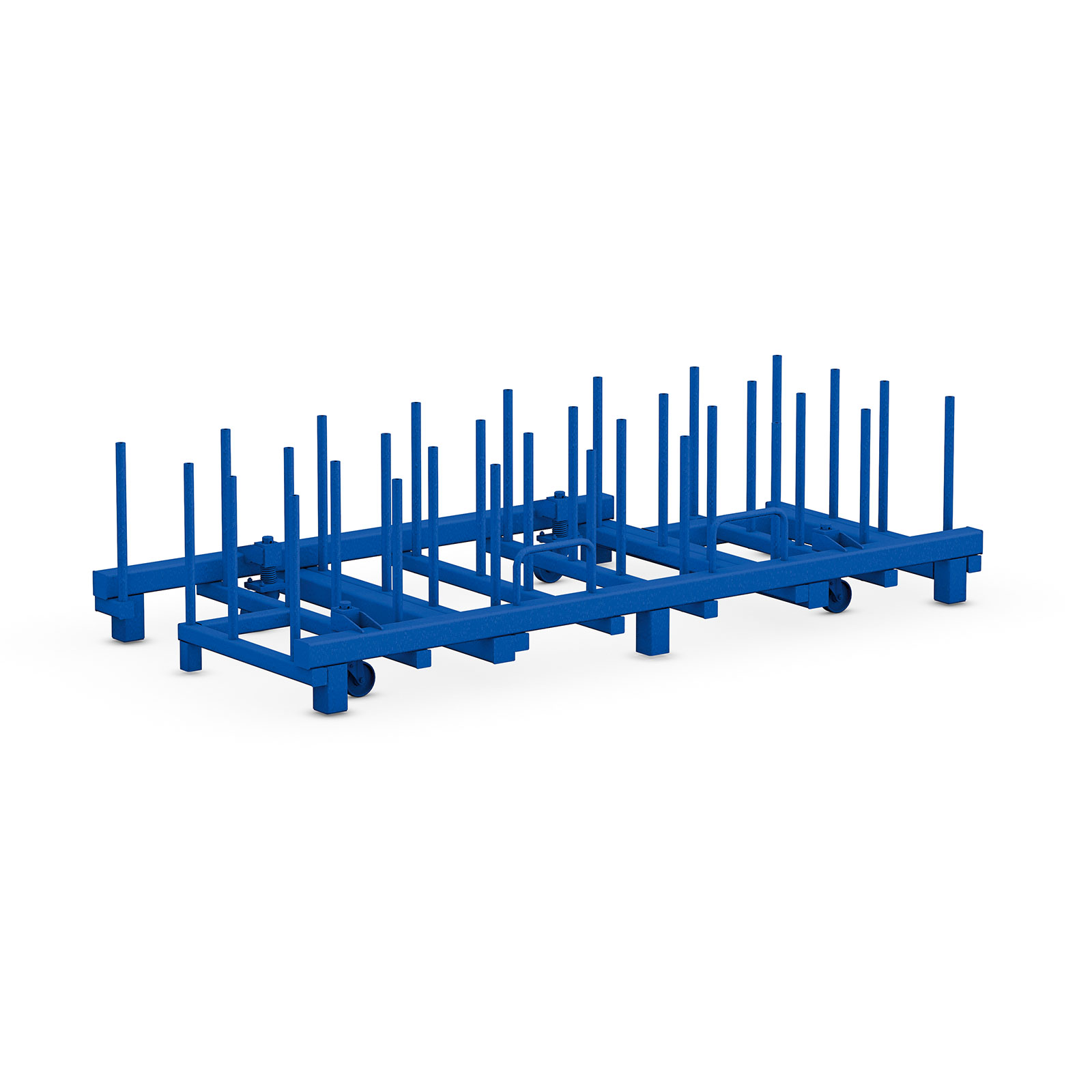

STOPA Storage Podium

The storage podium aids in the storage of stacks of sheet metal. Its four rollers are spring-cushioned. When not loaded, the steel frame is pressed upwards and can be shifted. When loaded, the steel frame lowers and the steel feet are planted firmly on the floor.

  • Can be positioned manually
  • With stamps for storing raw sheet metal
  • Only for Tower Eco or Mono
  • Available for all standard sheet formats

read more

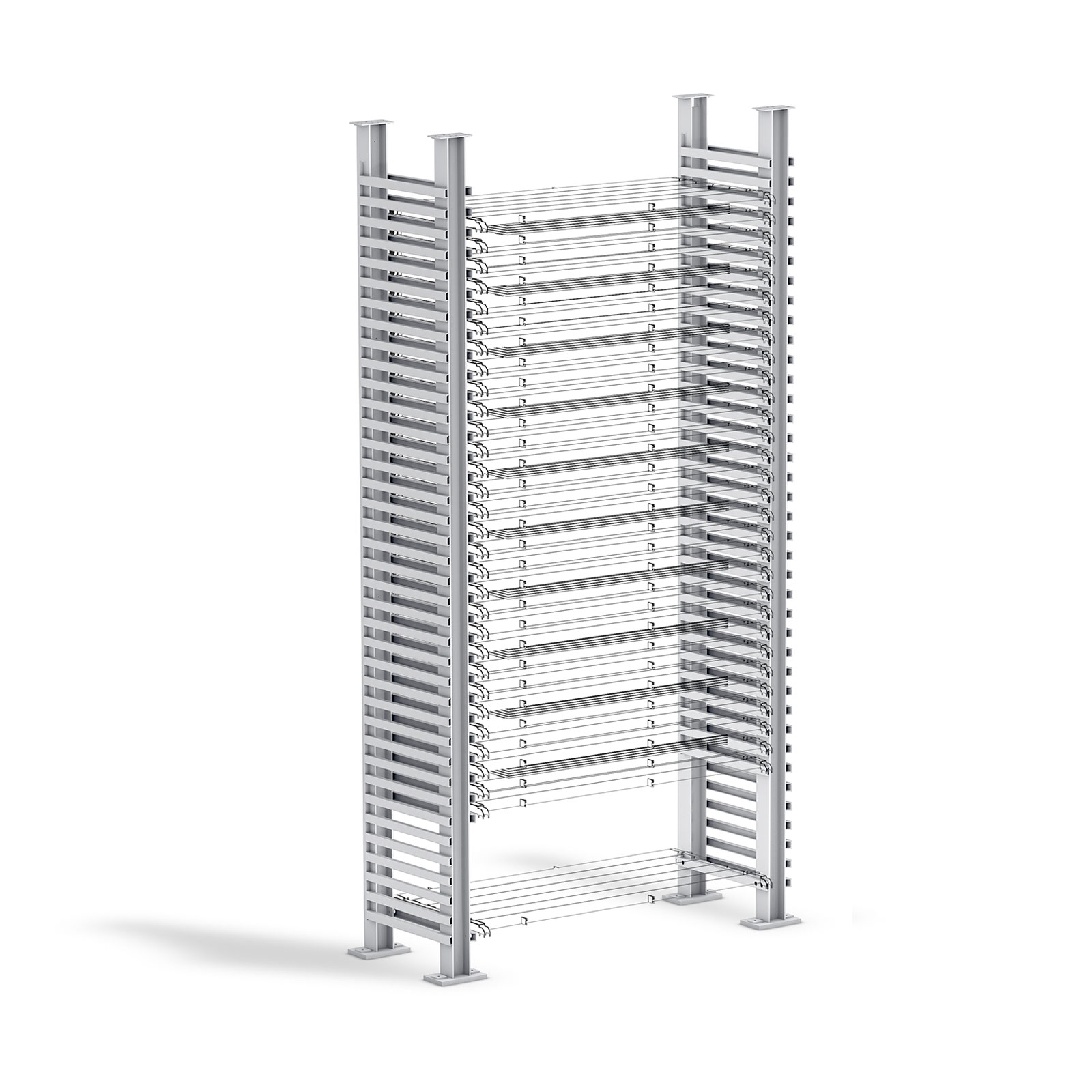

STOPA Tandem Changer

After the transport orders are entered, the Storage and Retrieval Unit brings the system pallet – including the material – to the preliminary storage bay.

  • Quicker material provisioning cycle because the storage pallet is already located at the preliminary storage bay
  • Possible for loading and unloading cycles

read more

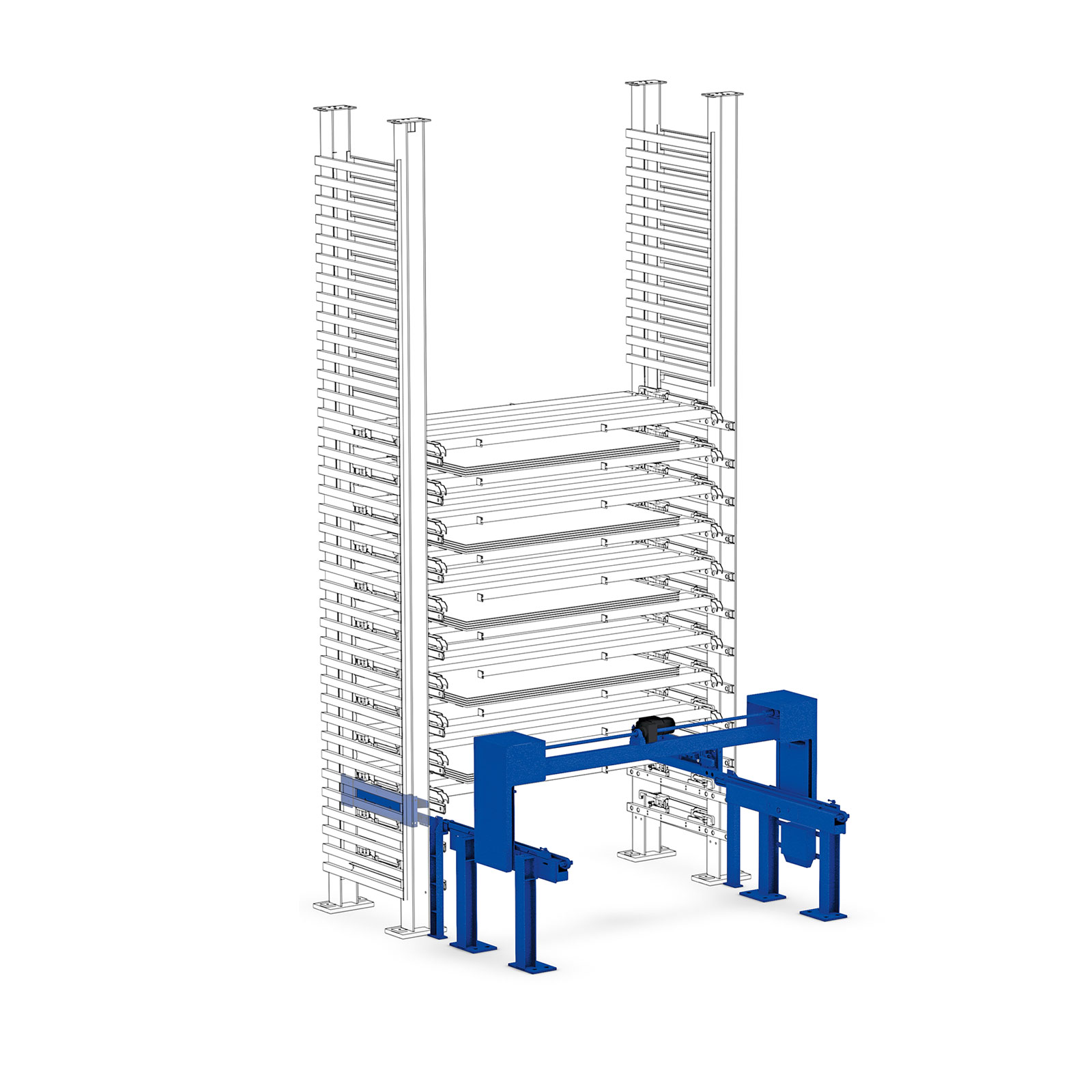

STOPA Pallet Quick Changer

After the transport orders are entered, the Storage and Retrieval Unit brings the system pallet(s) – including the material – to preliminary storage bays 1 and 2. The scissor lifting table with the lifting and lowering position retrieves the pallet from preliminary storage bay 2 and transports it outside for removal of the material.

  • Decoupling of the loading and unloading cycles from the SRU by direct access of the SLT to the preliminary storage bay
  • Possible for the loading and unloading cycle

read more

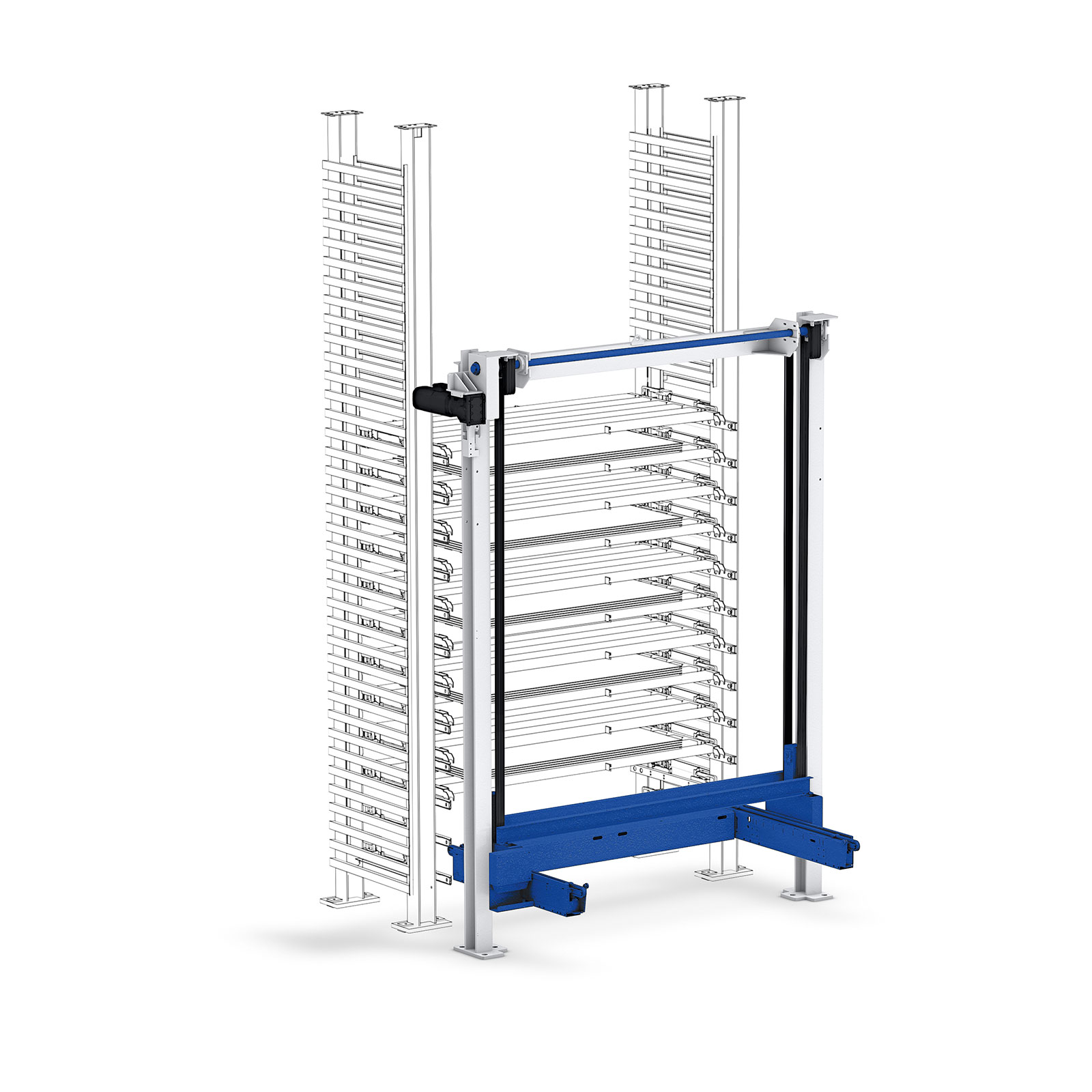

STOPA Pallet Transfer Unit / Buffer Station

The pallet transfer unit operates independently of the Storage and Retrieval Unit (SRU) and can commission pallets within a steel construction block. To do this, the SRU stores the necessary pallets in advance in the corresponding steel construction block. With a time-lag, the pallet transfer unit fills the linked cart while the SRU is busy at a different position.

  • Pallet commissioning in a single block, independent of the Storage and Retrieval Unit
  • Can be combined with SLT or transport cart
  • Quicker cycle times
  • Automatic operation
  • Prebuffering of pallets possible

read more

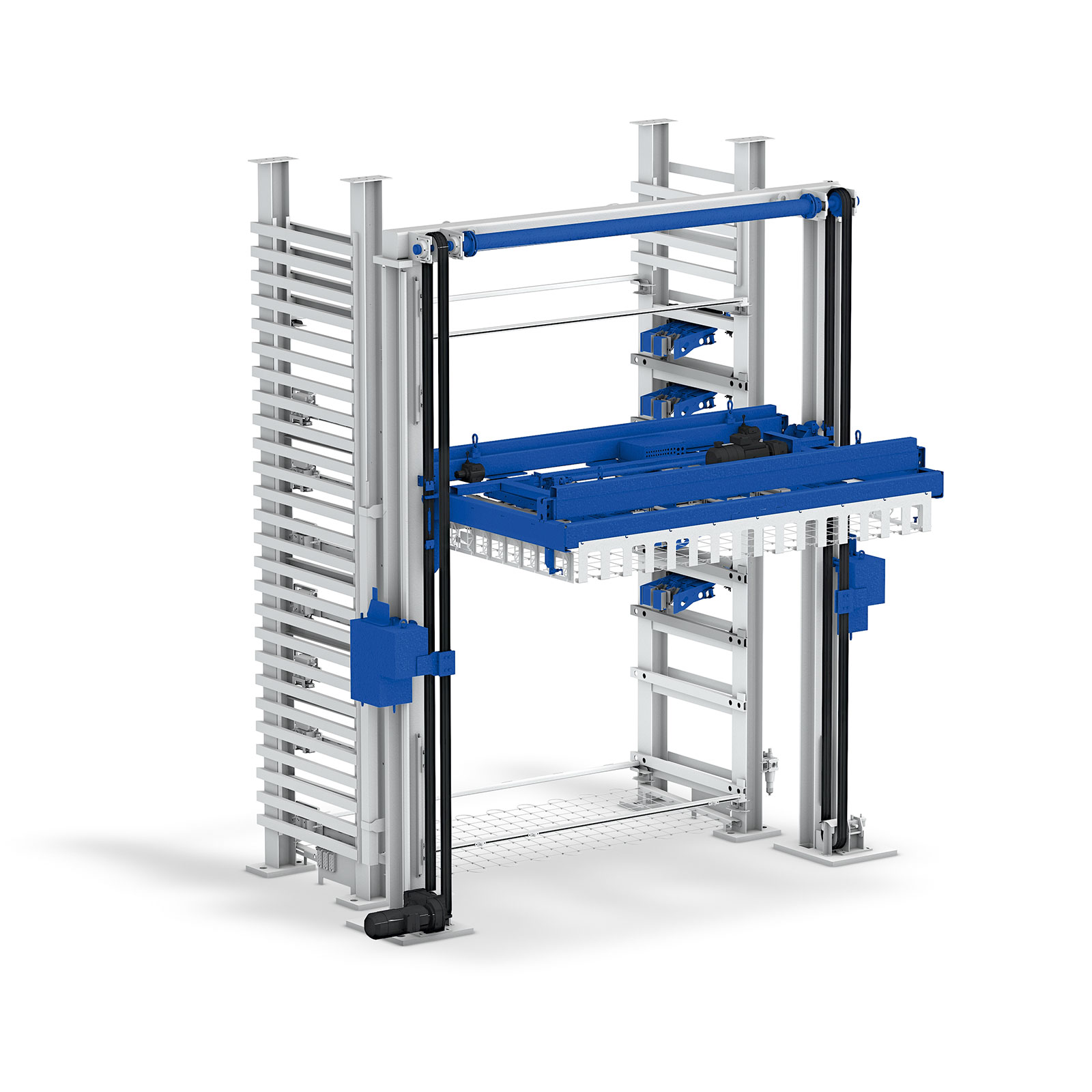

STOPA Picking Tower

The STOPA PICKING TOWER is used for the commissioning of sheet metal stacks of all composition in parallel to main production, e.g., for the production of lot size 1. In doing so, all of the parts belonging to the order are produced and processed together, as a single order. A suction traverse dynamically transports individual metal sheets from the preliminary storage bays and places them onto a commissioning pallet. The unwanted loading of double sheets is prevented by the integrated double sheet recognition feature.

  • Number of commissioning pallets: 2 max. stack height: 130 mm
  • Number of raw sheet pallets: 5 max. loading height: 130 mm
  • Compatible sheet thicknesses: 0.5–8 mm
  • Maximum height: 8 m

read more

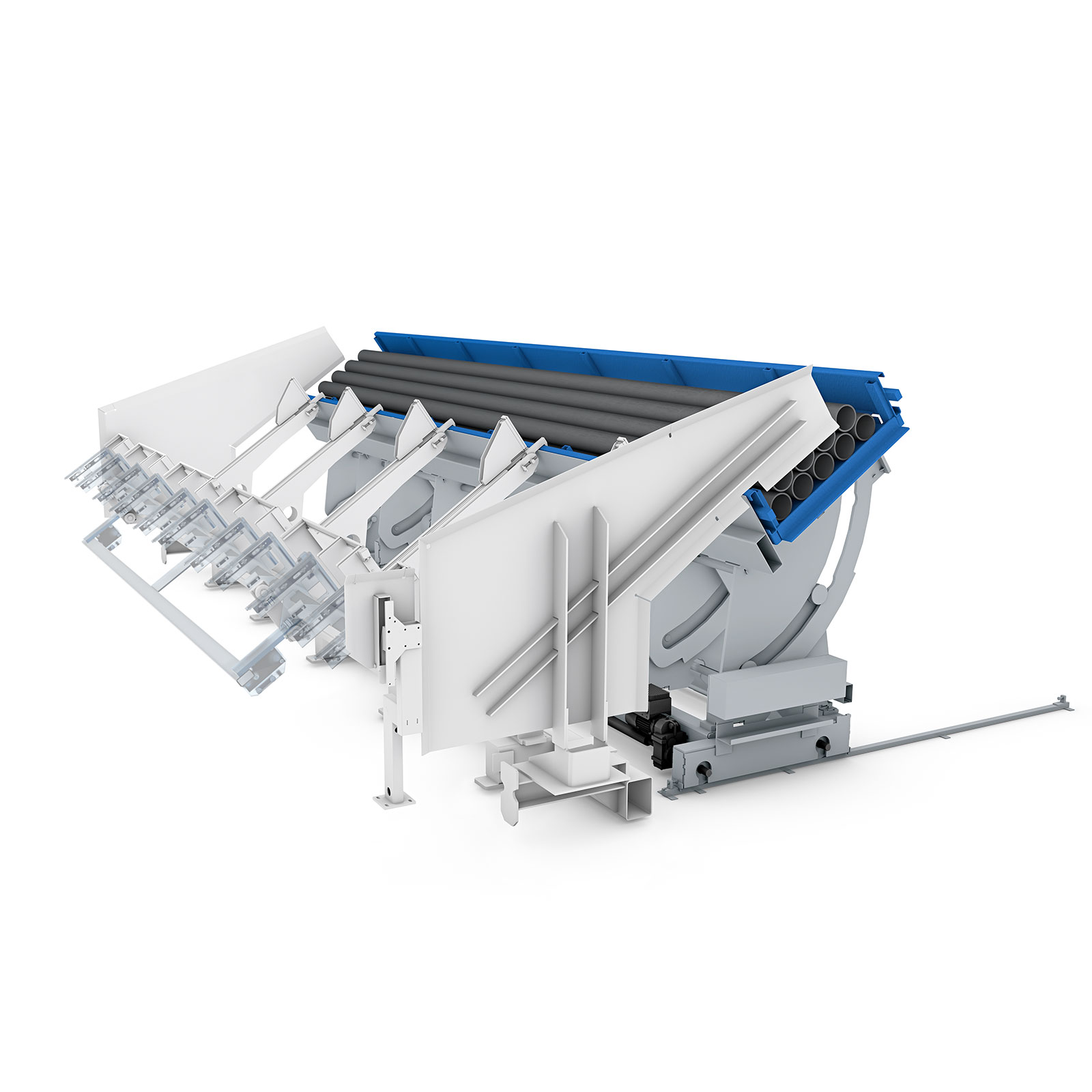

STOPA Lifting to Station

Transport carts for long-span cassettes can be equipped with a lifting unit to facilitate the storage and retrieval of rod-like materials. This is because the material can be lifted in a bundle onto the stamp by forklift. The stamps then lower and deposit the bundle of material into the cassette. Without this lifting unit, the stations could be loaded only through the use of loops.

  • For the storage or retrieval of bundles or crates by forklift
  • For improved material removal of deep cassettes

read more

STOPA Pallet Insertion Tool

The STOPA PALLET INSERTION TOOL allows, for the first time, STOPA standard system pallets to be stored by the operator. This storage aid is attached to a forklift. When the unit is then lowered over a stack of pallets, the uppermost pallet is arrested on its rollers and can be lifted. This is then lowered at the incoming goods station, at which time the pallet is optimally positioned on the station and the arresting mechanism is released automatically.

read more

STOPA VARIOCART *

The STOPA VARIOCART more flexibilty, more freedom, mor efficiency.

The STOPA VARIOCART can store sheet metal packages with a load of up to 3 tons quick and simple. It can lift system pallets automaticly as well on tied machines as on a pedestal outside the shelf blocks.

  • Autonomous and free moving transport system
  • Flexible connection of different stations
  • Direct travel path - shorter transport times
  • Stepless control - gentle braking
  • A single solution for optimising your transport logistics
  • New hall utilisation possibilities

*Estimated sale launch in 2018

read more

Storage Management Software

STORAGE MANAGEMENT SOFTWARE

Stopa LVS is a highly efficient management system for automatic warehouses that is easy to configure and operate, with an attractive price.

Besides managing stocks, STOPA LVS transmits orders to the warehouse control system and monitors travel movements.

Workers interact with the system using a clearly organized, self-explanatory interface. The stock overview provides quick, comprehensive information on the state of each workstation. All movement orders and stock movements are recorded in the posting journal. Interfaces are available for integration of existing production machinery.

  • Clearly organized graphic user interface
  • Static and/or chaotic storage, configurable for each shelf and pallet
  • Different pallet/cassette types possible
  • Management of any required number of shelves and storage areas, e.g. floor stores
  • Management of inventories down to batch level
  • Blocking of shelves, items or individual batches
  • Full withdrawals, partial withdrawals, warehouse admission, relocation of stock
  • Automatic determination of part quantities by integrated weighing unit (optional)

read more

Transport Units

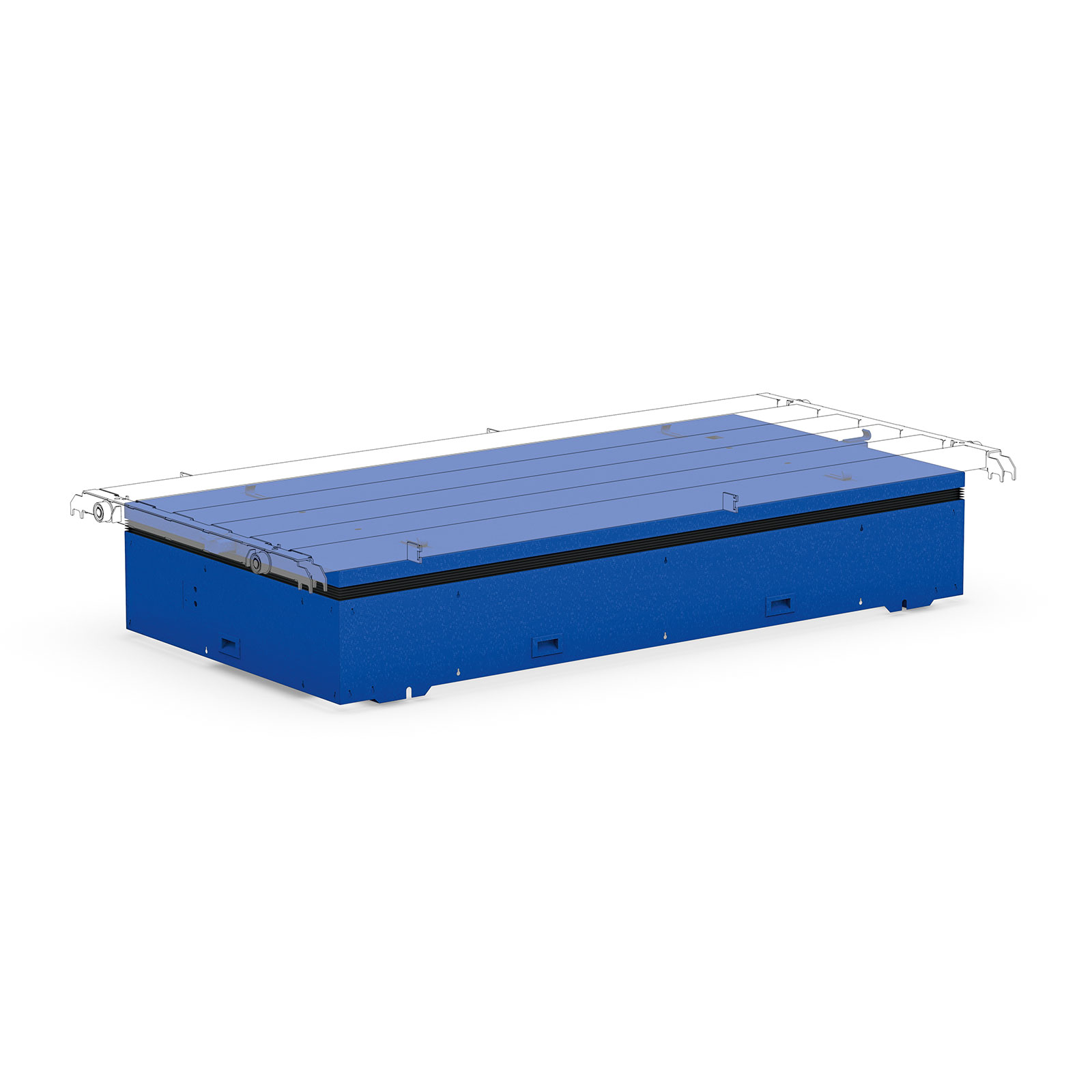

STOPA WIRELESS CART

The STOPA WIRELESS CART can lift pallets with a load of up to 3 tons out of the steel shelf and place them on a pedestal outside the shelf blocks. The worker can for example manually remove finished parts from the pallet, without the risk of tripping over the rails or the cable drag chain.

  • Max. effective payload: 3 tons
  • Compatible pallet formats: GF (1.525 x 3.050 mm)
  • Max. lift: 260 mm
  • Operating voltage: 24 V DC
  • Battery type: Lithium technology

read more

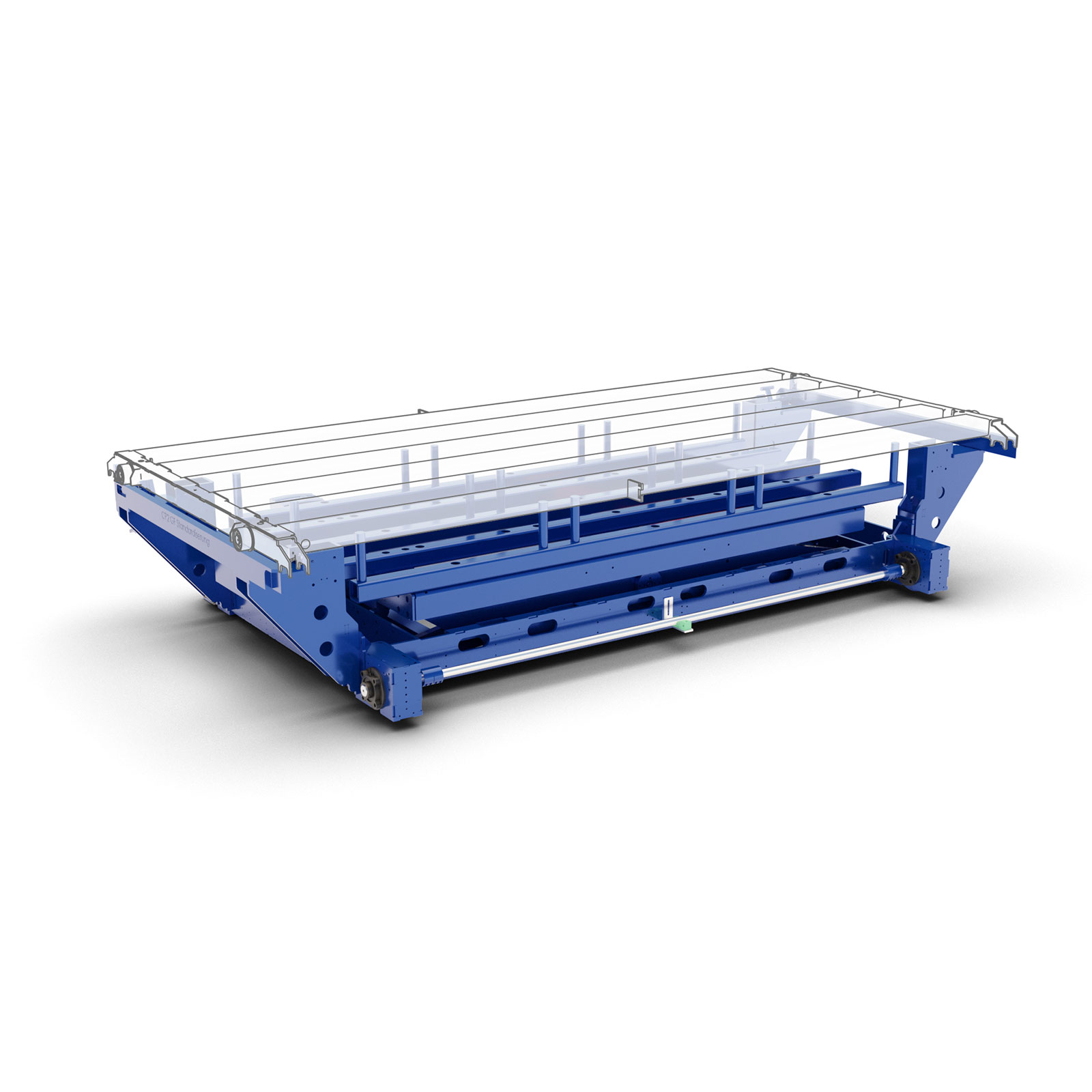

STOPA Incoming Goods

The purpose of the incoming goods station is to simplify the storage process for raw sheet metal. The stamps enable the uncomplicated storage of the material by means of forklifts or cranes. The lowerable stamps make it possible to also use the station for outgoing goods.

  • Model with entry / exit at all openings (on the face and longitudinal sides) available
  • Available for all usual sheet metal formats and multi-format warehouses
  • Optional coordinate corner stamps at the carriage for exact positioning of the raw sheet metal
  • Positionable stamps for convenient loading by forklift or similar equipment
  • Fixed height
  • Can be used as outgoing goods station
  • Suitable for system pallets and EPAL carriers
  • Manually loadable

read more

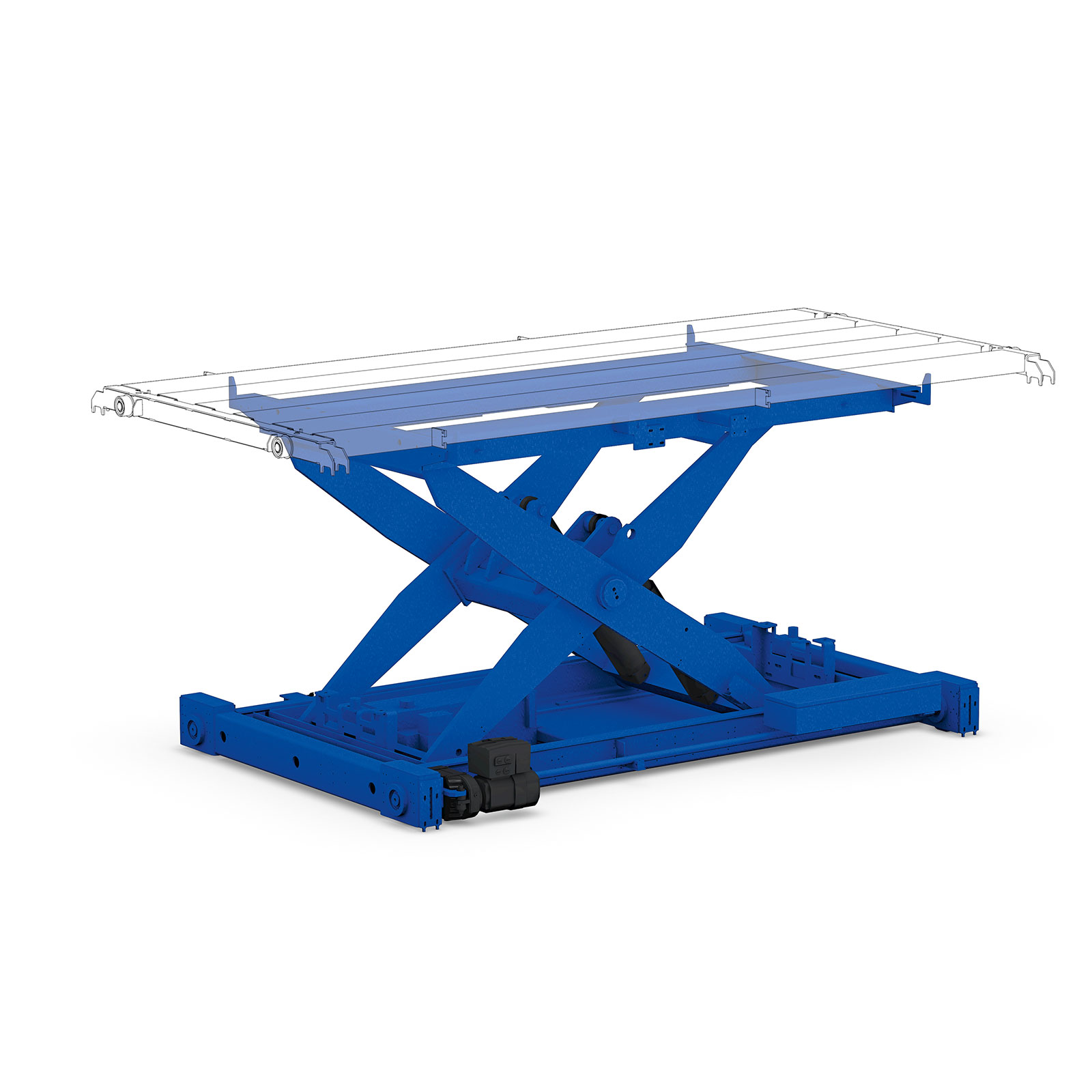

STOPA Scissor Lifting Table (SLT)

  • Model with entry / exit at all openings (on the face and longitudinal sides) available
  • Available for all standard sheet metal formats and multi-format storage systems
  • Variable height
  • Can be combined with upper cart
  • Offers option to serve deposition frames
  • Lowest loss of storage space due to low height
  • Can be expanded with tandem changer
  • Can be expanded with pallet quick changer
  • Suitable for system pallets and EPAL Carriers

read more

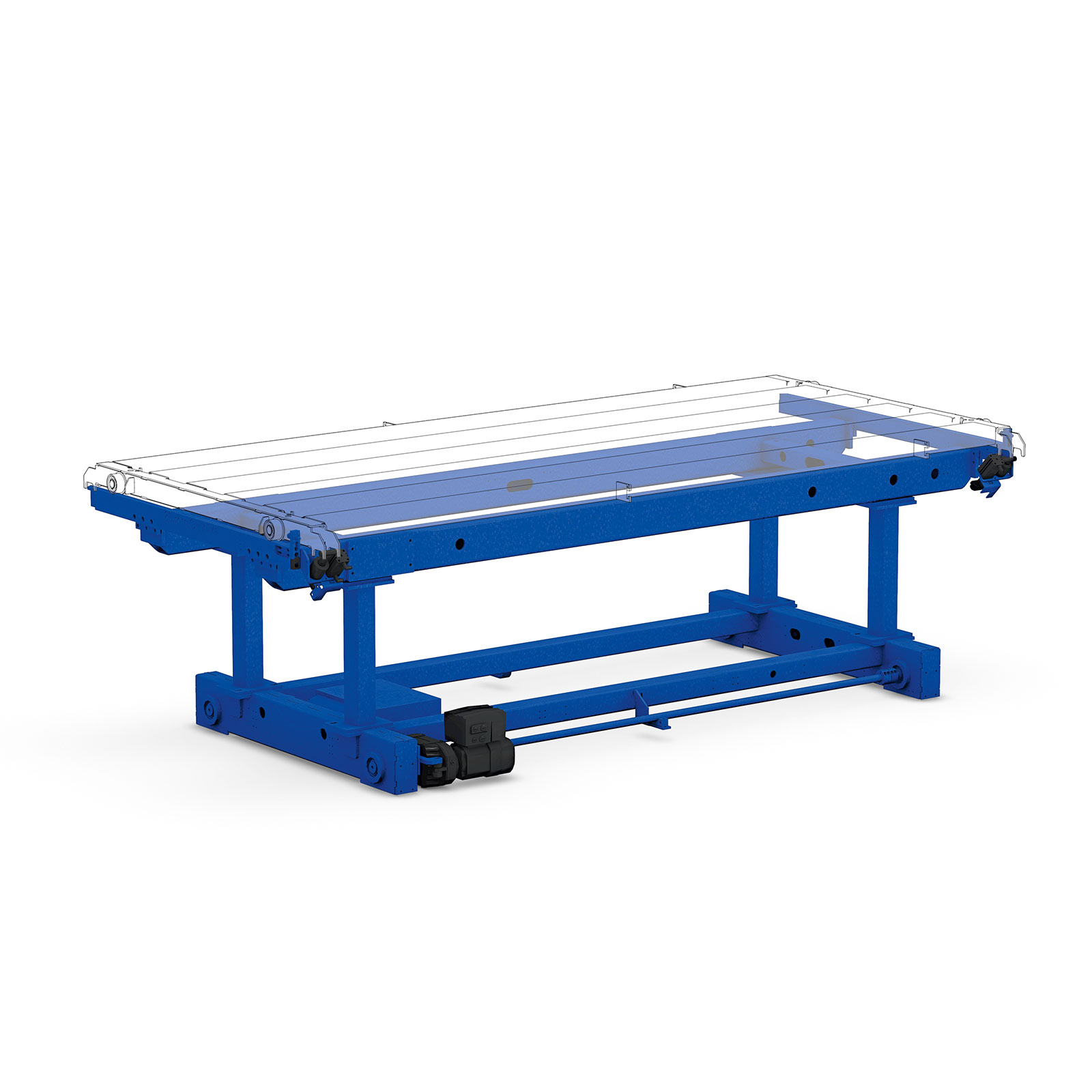

STOPA Transport Cart

  • Fixed heights
  • Different heights possible
  • Model with entry / exit at all openings (on the face and longitudinal sides) available
  • Can be combined as lower cart with upper cart
  • Dead-man or automatic mode
  • Available for all standard sheet metal formats and multi-format storage systems
  • Suitable for system pallets and EPAL Carriers

read more

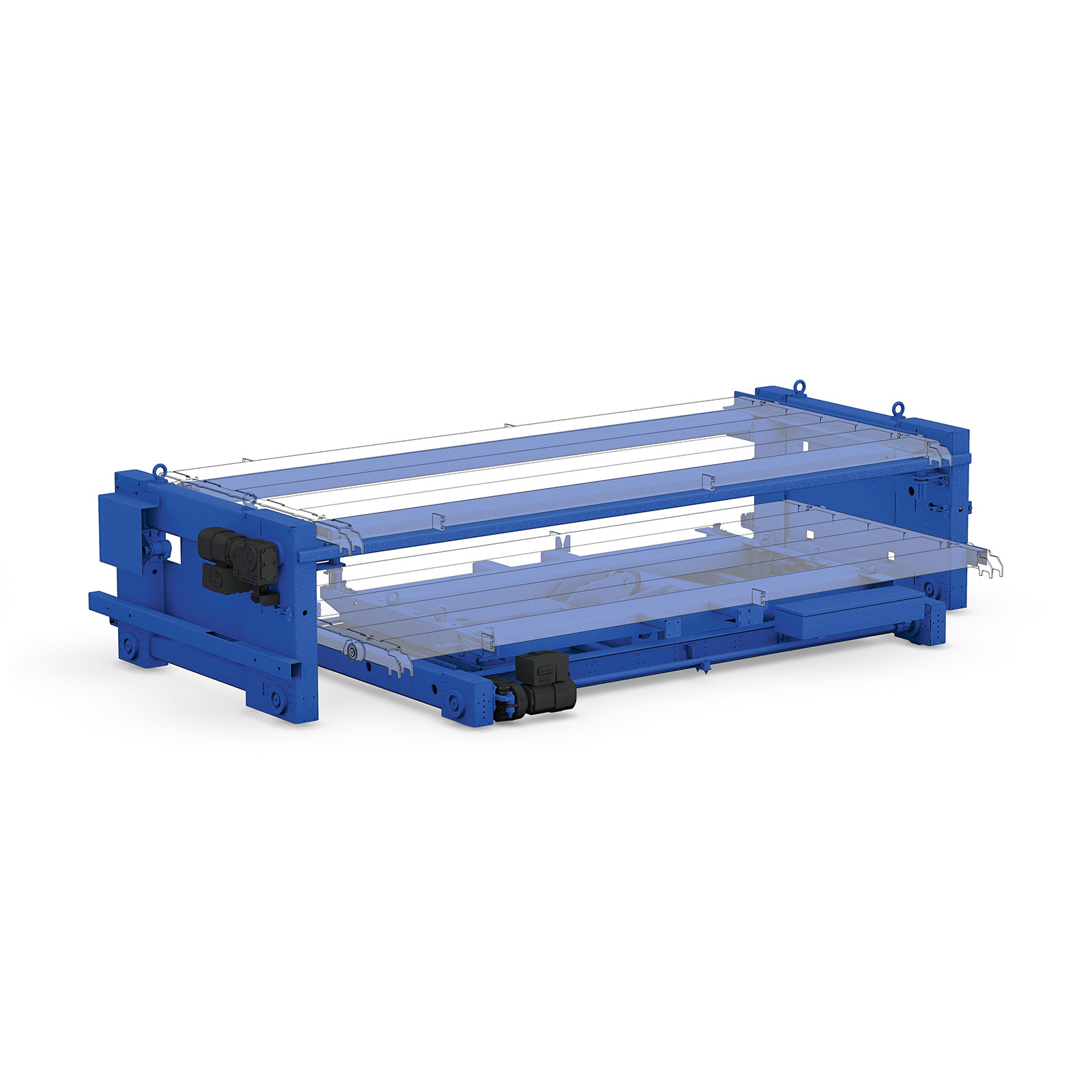

STOPA Double Cart (Upper / Lower Cart)

  • Consists of a lower cart and an upper cart
  • Standard model is two transport cars (upper / lower cart) with a fixed height
  • Lower cart as scissor lifting table possible
  • Parallel loading and unloading
  • Quick cycle times
  • Low loss of space
  • Can be used both for supplying machines with raw sheet metal and for the return storage of finished parts
  • Available for all standard sheet formats
  • Suitable for system pallets and EPAL Carriers
  • Entry / exit on the face side possible
  • Both dead-man mode and automatic operation

read more

STOPA Rotary Station

As a rule, rotary stations are used whenever the coordinate corner at various machines cannot be reprogrammed immediately or at all. In such cases, the rotary station makes precise processing still possible.

  • For more-flexible positioning of machines
  • Can be used both for supplying machines with raw sheet metal and for the return storage of finished parts
  • Available for all standard sheet formats
  • Suitable for system pallets and EPAL Carriers
  • Version with scissor lifting table possible
  • 360° rotation possible
  • Both dead-man mode and automatic operation

read more

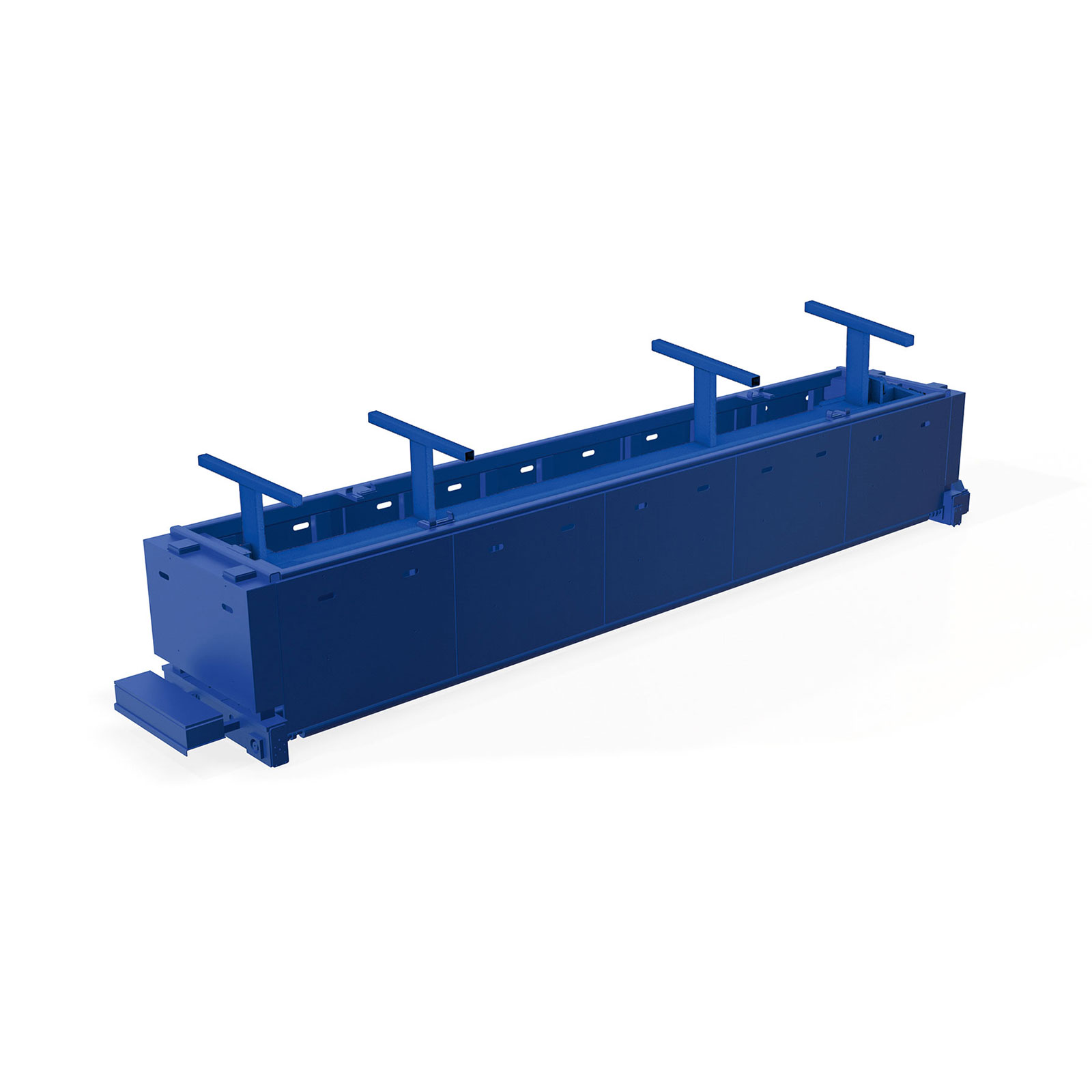

STOPA Storage / Retrieval Station for Long-Span Goods

Long-span goods are transported to the respective stations using the transport cart for long-span cassettes.

  • Model with entry / exit at all openings (on the face and longitudinal sides) available
  • Dead-man or automatic mode
  • Semi-automatic linkage of machines
  • Can be expanded with lifting function

read more
